Trolley with electric adjustment of display height and tilt up to 90°: a single remote takes the display from upright to interactive table. For 32″ to 95″ displays up to 100 kg, with 650 mm of travel.

Display

32–95″

Load

100 kg

Travel

650 mm

Tilt

0–90°

Request a quote Datasheet (PDF, Italian)

Highlights

One remote for everything

Height and tilt are set from the same remote, with no manual work on the stand.

From upright to table

The display tilts up to 90° and becomes a horizontal interactive surface, so groups can work around the screen.

Three power sockets

Three sockets built into the trolley to power the display and accessories.

Safe to move

Four braked castors and a safety lock for the display: the trolley moves from room to room with nothing to dismantle.

Fits many settings

Designed for touch displays in education, offices, digital signage and events.

5-year warranty

CE-certified steel structure, with a five-year warranty.

Datasheet

Technical details

Code

HMIFMIMIMOT

Type

Floor trolley with tilting display

Motorised

Yes (height and tilt)

Height adjustment

Electric, 0–650 mm

Tilt

0–90°

Control

Remote control

On/Off button

Yes

Telescopic

Yes

Built-in power sockets

Optimised cable management

Yes

Rotation

Built-in USB hub

Mounting

Display

32″–95″

Maximum load

100 kg

VESA min

200 × 200 mm

VESA max

900 × 600 mm

VESA patterns

200×200, 300×200, 300×300, 300×400, 400×200, 400×300, 400×400, 400×600, 600×200, 600×300, 600×400, 600×500, 600×600, 800×200, 800×400, 800×500, 800×600, 900×600

Mounting type

Floor

Orientation

Landscape

Weight and dimensions

Weight

50 kg

Dimensions (W × D × H)

1050 × 850 × 1350 mm

Base

H-shaped

Castors

4, with brakes

Design

Colour

Black

Frame material

Steel

Certification

Package

Packaging

Box

Contents

Frame, base, display tray, installation guide and mounting hardware

Remote control

Yes

Mounting kit

Yes

User manual

Yes

Warranty

5 years

Display heights

Upright · min

765 mm

Upright · max

1415 mm

Table · min

700 mm

Table · max

1350 mm

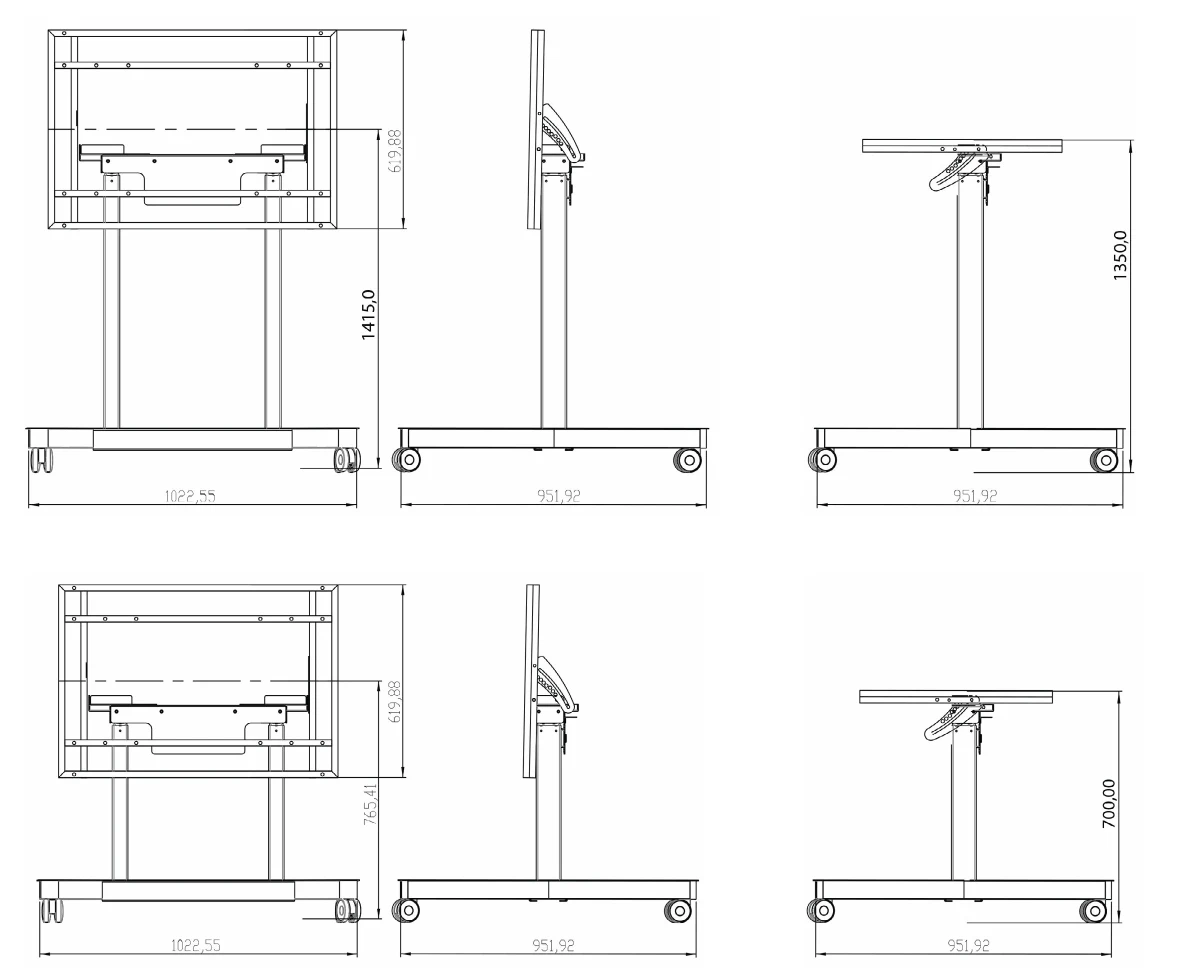

Dimensioned drawing of the motorised TABLE trolley HMIFMIMIMOT

Dimensions in millimetres, taken from the manufacturer’s datasheet.
